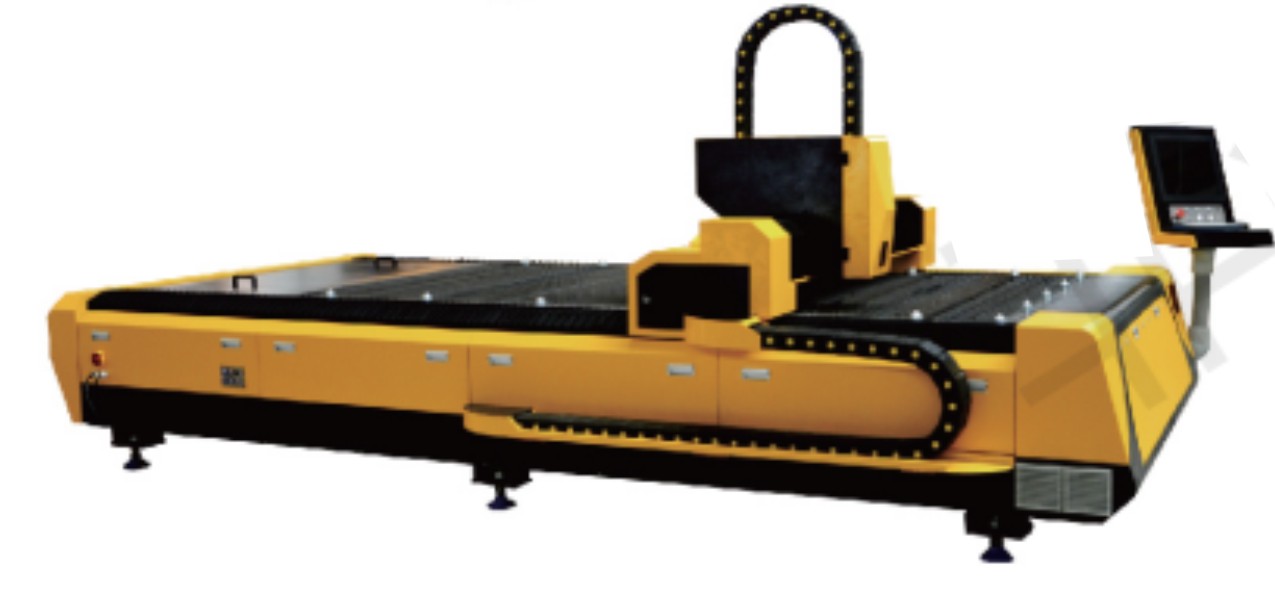

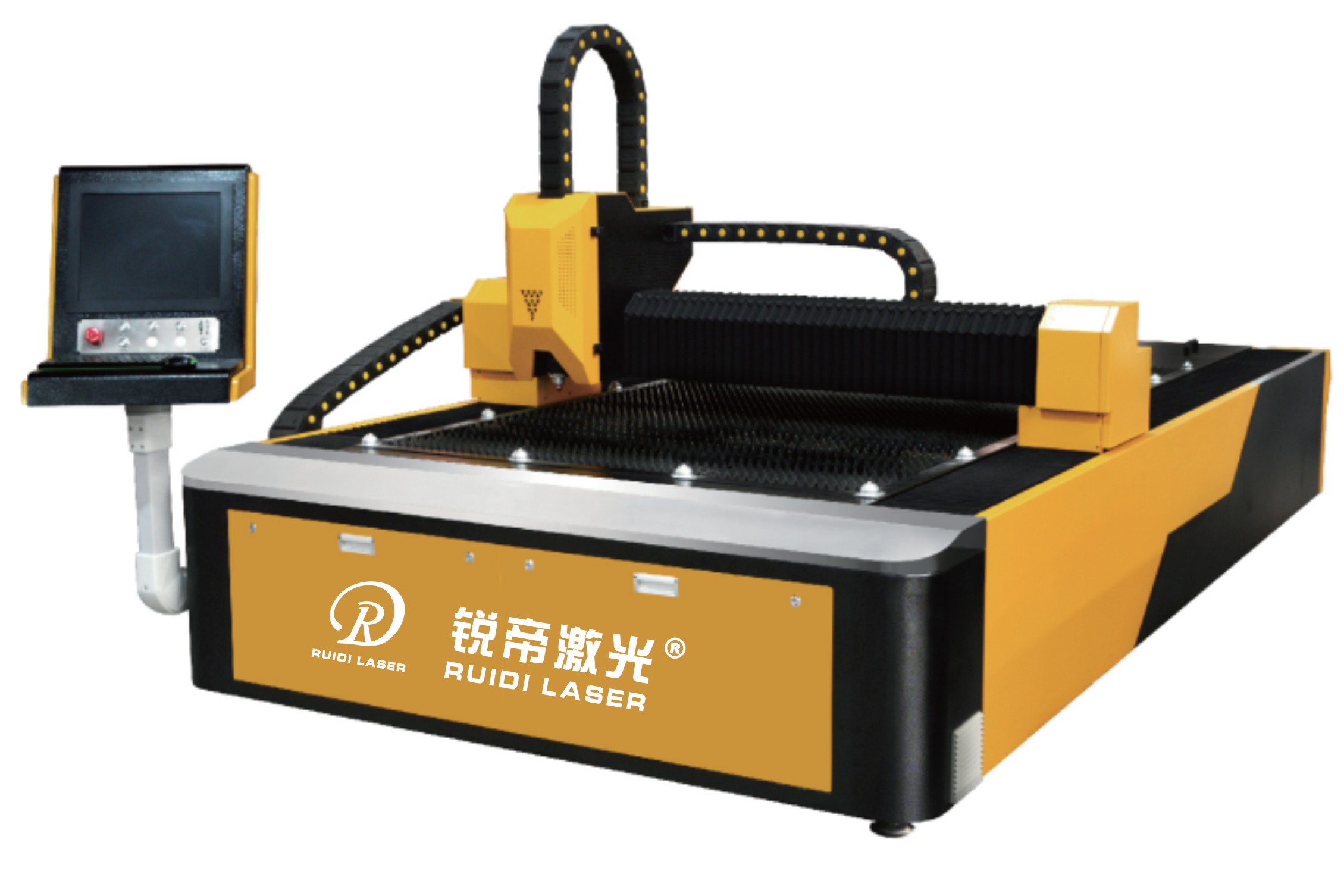

Fiber laser cutter
Summary
Applicable Material:Metal sheet or tube(add cutting tube equipment)、 mostly using in stainless steel、carbon steel、aluminum alloy、galvanized sheet、electrolytic plate、brass sheet、different alloy plate and rare metal.
Applicable Industries:
Manufacturing industry such as rheaprocessing of metal sheet, automobile industry , electrical equipment , elevator , accurate spareparts, household appliances, craftgift, instrument, decoration and so on
Attribute
Type: RDF-1325/RDF-1530Model: RDF-1325/RDF-1530
laser tube power: 500W 800W 1000W 1500W
The alias: Fiber laser cutter
Specifications (mm): 1300*2500mm 1500*3000mm
Information
Technical Index
Type
|
RDF-2513F
|
Machine tool running temperature
|
0-40℃
|
Laser type |
Fiber |
Power supply |
380V/50Hz |
Laser wave length |
1070nm |
Type of cooling |
Water cooling |
Laser output power |
300W-1000W |
Working time |
24 hours |
Cutting area |
2500MM*1300MM |
Weight |
3500kg (different wattage different weight) |
Minimum line width |
<0.1mm |
Dimension |
4700mm*2700mm*2000mm |
Driving mode |
Precision rack single drive |
Maximum speed |
120m/min |
Laser source |
Standard original laser tube, or choose another brand |
Maximum accelerated speed |
1G |
Cutting speed&deepness |
Depend on material |
Level of Laser security |
Class IV |
Resetting positioning accuracy |
±0.02mm |
Level of system protection |
IP |
