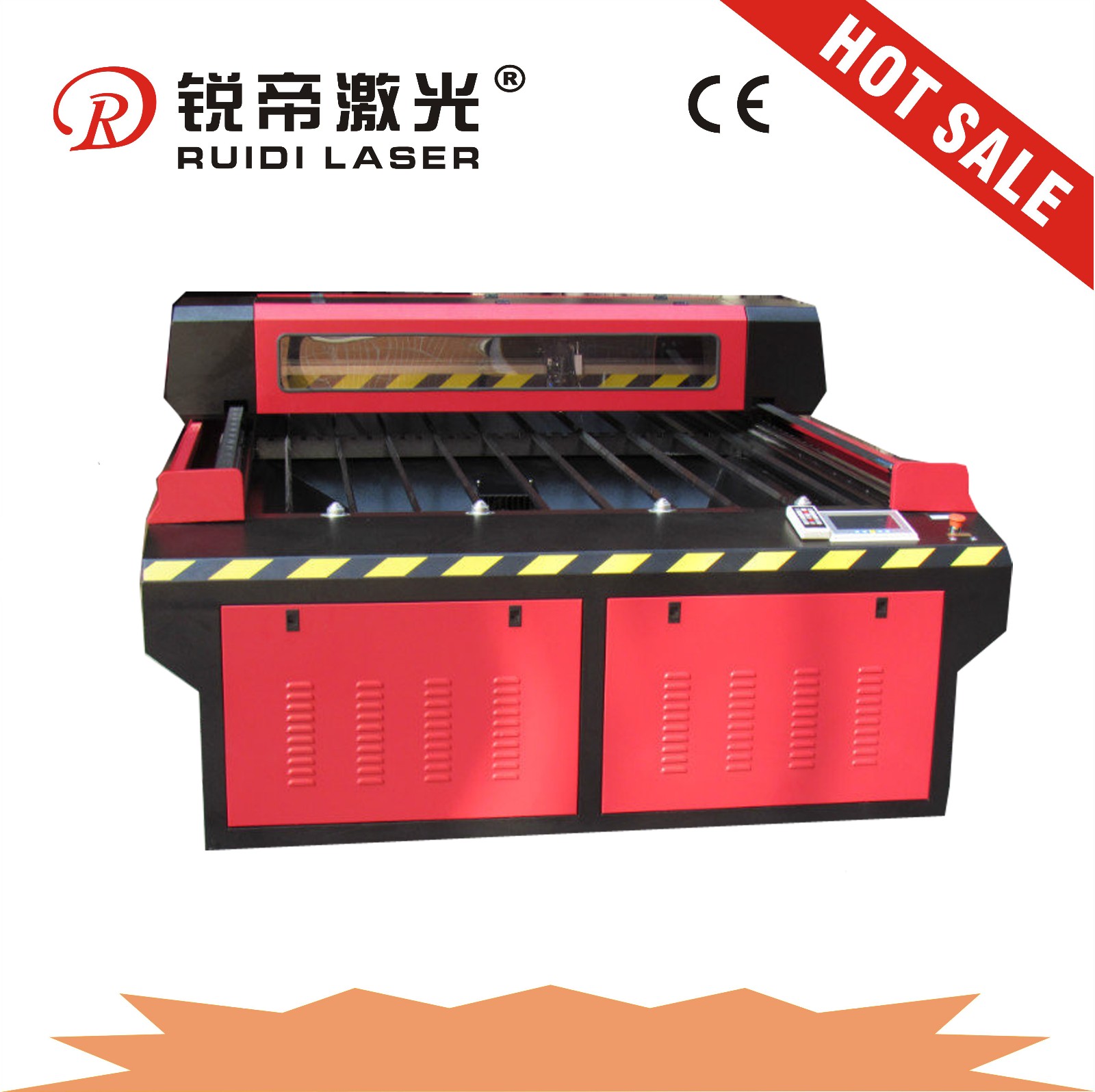

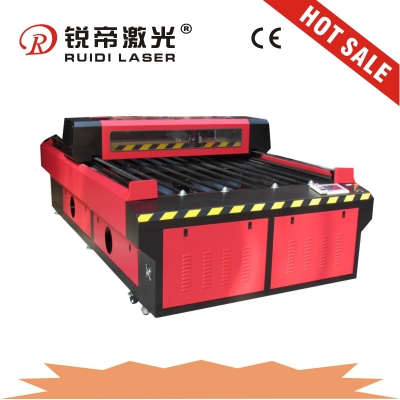

1325 mixed cutter - 150 w
Summary
High stability: the numerical control system, which can meet the precision machining, high stability, long time continuous working range: cutting of metal and non-metallic materials, suitable for use in many industries; cutting effect: using mechanical cutting head servo system, the cutting head can vary with sheet metal still, the cut-off point position will remain unchanged, the slit is smooth, clear cross-section effect is good. Easy to operate: simple operation, support CDR, CAD, direct artwork input and output.Attribute
Type:Model: RD-1325M
laser tube power: 150w-300w
The alias: Metal and non-metal laser cutting machine
Specifications (mm): 150w
Information
Processing area: 1300*2500mmLaser tube power: 150W
Engraving speed: 0-64000mm/mim
Maximum engraving depth: 20mm
Minimum formed text: Chinese characters 2 * 2mm, letter 1 * 1mm
Resolution: 4500dpi
Power supply: AC220V + 10%, 50HZ
Positioning accuracy: < 0.01mm
Power: less than 2200W
Operating temperature: 0C~45C
Working humidity: 5%~95% (without condensate)
Support graphics formats: BMP, HPGL (PLT), JPEG, GIF, TIFF, PCS, TGA, CDR, DWG, DXF.
Overall weight: 900KG
Size: 2100 * 3450 * 1000mm
